Biostar B560MX-E PRO Intel B560 LGA 1200 micro ATX
Marka: Biostar
Ürün adı: B560MX-E PRO
Ürün kodu: B560MX/E PRO
- Supports 10th/ 11th Generation Intel Core Processor
- Intel B560 single chip architecture
- Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4000+(OC) up to 128 GB Memory
- Supports PCIe 4.0
- Supports PCIe M.2 4.0 (64Gb/s)
- Supports Intel Optane Technology
- Supports USB 3.2 Gen1
- Supports WiFi 6 module (No WiFi 6 card included)
- Supports HDMI 1.4 4K resolution
Kullanım kılavuzu (pdf)
Ürün özellikleri
İşlemci
İşlemci üreticisi
The manufacturer that produced the processor.
Intel
İşlemci soketi
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1200
İşlemcilerle uyumlu
A processor which is compatible with this device
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maks. SMP işlemci sayısı
1
Hafıza
Destekli hafıza türü
Types of memory which can be used with the product.
DDR4-SDRAM
Bellek yuvalarının sayısı
4
Hafıza alanı türü
A memory slot
DIMM
Hafıza kanalları
Dual-channel
ECC
ECC means Error Correction Code
Non-ECC
Destekli hafıza saati hızı
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2133,2400,2666,2933,3200,3600,3733,3800,3866 MHz
Maksimum bellek
Bilgisayarlarda kullanılan bu bellek saniyede yüzlerce bilgiyi günceller ve devreleri tazeler.
128 GB
Tamponsuz hafıza
Depolama yöneticisi
Desteklenen depolama sürücüsü tipleri
The type of storage drives the device is compatible with.
HDD & SSD
Desteklenen depolama sürücüsü arayüzleri
M.2,SATA III
Grafik
Paralel işleme teknolojisi desteği
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
Desteklenmez
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
DirectX versiyonu
DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.
12.0
Dahili I/O
USB 2.0 bağlayıcıları
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
USB 3.2 Gen 1 (3.1 Gen 1) konnektörleri
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
SATA III bağlantı sayısı
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
S/PDIF çıkış bağlayıcı
Ön panel ses bağlayıcısı
Ön panel konektörü
ATX güç bağlayıcı (24-pin)
CPU fan bağlayıcı
Şasi fanı bağlayıcı sayısı
2
EPS güç bağlantısı (8-iğne)
COM bağlayıcı sayısı
1
TPM bağlayıcı

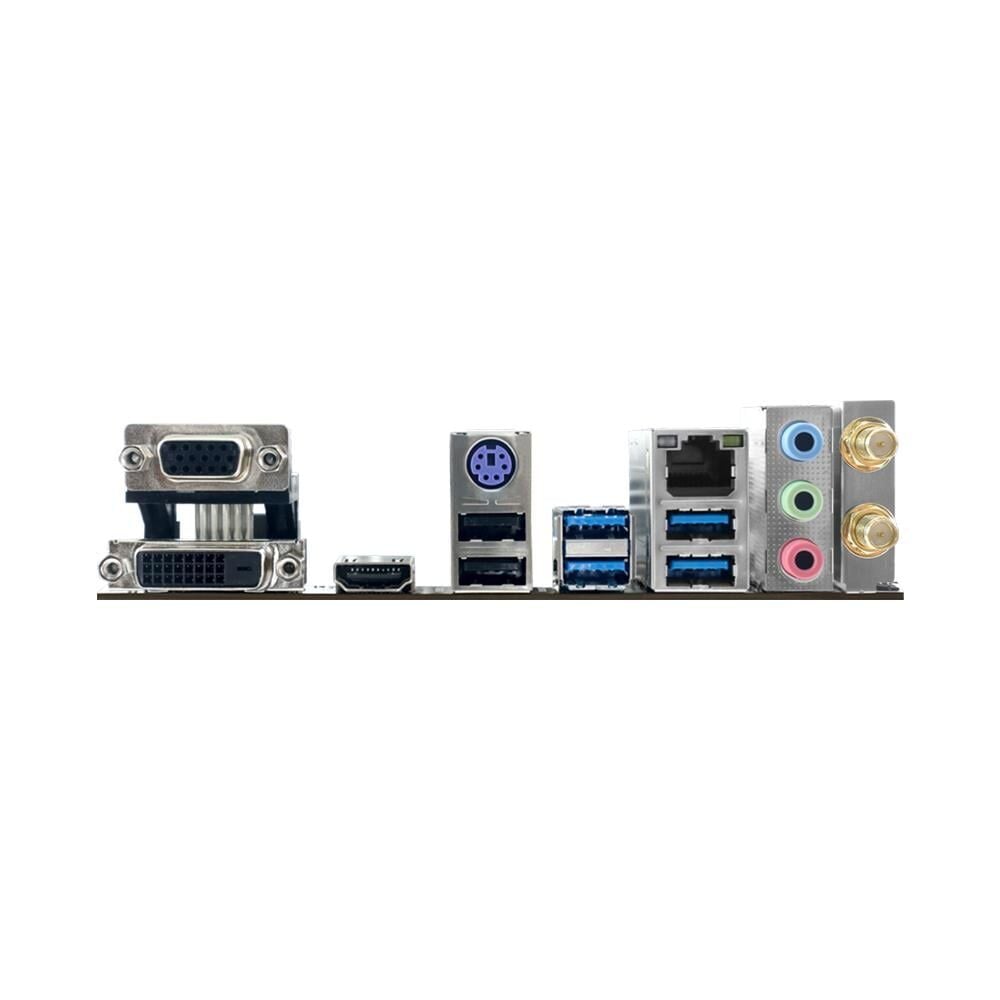

Arka panel I/O portları
USB 2.0 bağlantı noktası sayısı
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Arka panel I/O portları
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
4
Ethernet LAN (RJ-45) port sayısı
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PS/2 bağlantı noktaları
The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.
1
VGA (D-Sub) bağlantı noktası sayısı
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
HDMI port sayısı
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
HDMI versiyonu
1.4
DVI-D bağlantı noktası sayısı
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device
1
WiFi-AP anten soketi
2
Ağ Bağlantıları
Ethernet LAN bağlantısı
An Ethernet LAN (Local Area Network) interface is present
Ethernet arayüz türü
Gigabit Ethernet
LAN kontrolörü
Realtek RTL8111H
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Özellikler
Anakart yongası
The chipset connects the microprocessor to the rest of the motherboard.
Intel B560
Ses çipi
Realtek ALC897
Ses çıkış kanalı sayısı
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanallar
PC sağlıklı gözleme
Fan, ısı, Voltaj
Bileşen
What this product is used as a part of (component for).
PC
Anakart form faktörü
Design of the motherboard (ATX
micro ATX
Analevha yonga kümesi ailesi
The category of motherboard chipset e.g. Intel
Intel
Desteklenen Windows çalışma sistemleri
Windows vesions wich can be used with the device.
Windows 10 x64
Genişletme yuvaları
PCI Express x1 (Gen 3.x) yuvası
1
PCI Express x16 delik
2
M.2 (M) yuvalarının sayısı
2
BIOS
Temiz CMOS bağlantı kablosu
Ağırlık & boyutlar
Genişlik
The measurement or extent of something from side to side.
244 mm
Derinlik
The distance from the front to the back of something.
244 mm
Paket içeriği
Pakete dahil kablolar
SATA
Sürücüler dahil
Ürünle gelen yazılım
Software distributed with another product such as a piece of computer hardware or other electronic device
BullGuard
